AC100-240V 50/60Hz or DC 12V; [Temperature control switch] AC100-240V 50/60Hz or DC 12V (only protocol air conditioning VRV and infrared air conditioning control)

[control mode] Four 10A relays, each with a maximum load of 4A, the total load is less than 14A, 220V output, four 10A relays, with COM interface, can be mixed output control; [Load] LED≤300W, daily running lamp ≤600W, incandescent lamp ≤800W; [Dimmer switch]

[Control mode] 4 channels of 0-10V dimming / 2 channels of 0-10V dual-color temperature dimming / 1 channel of 0-10V RGB dimming [Load] LED light single channel maximum 200W; 2 total 300W; According to the load parameters of the driving power supply of the lamp, a maximum of 6 drivers can be connected to 1 channel

[control mode] 2-way thyristor dimming, 1-way dual-color temperature dimming [load] LED light single channel maximum 200W; 2 total 300W; According to the load parameters of the driving power supply of the lamp, a maximum of 6 drivers can be connected to 1 channel

[control mode] 2 strong current motor / 2 dry contact motor [load] 150W motor

[Control mode] Protocol air conditioner (VRV), water cooler air conditioner (fan coil), infrared air conditioner, water and floor heating. Note: Air conditioning and floor heating can share a thermostat switch control; [Temperature detection] Sub-panel detection and external temperature sensor detection; [Working mode] Refrigeration, heating, air supply, dehumidification, constant temperature, floor heating, rapid heating (heating and floor heating work at the same time)

Private wired S-Bus 485, wireless S-Bus 2.4G, wireless WIFI [temperature control switch] Private wired S-Bus 485, wireless WIFI

Microcontrol touch [temperature control switch] LCD touch

150mA

vibration

8 colors, and the keys are independently customized

Custom laser engraving

can control infrared equipment (such as: air conditioning, TV, AV, etc.)

0-90%

-10℃-50℃

86x86x50 mm

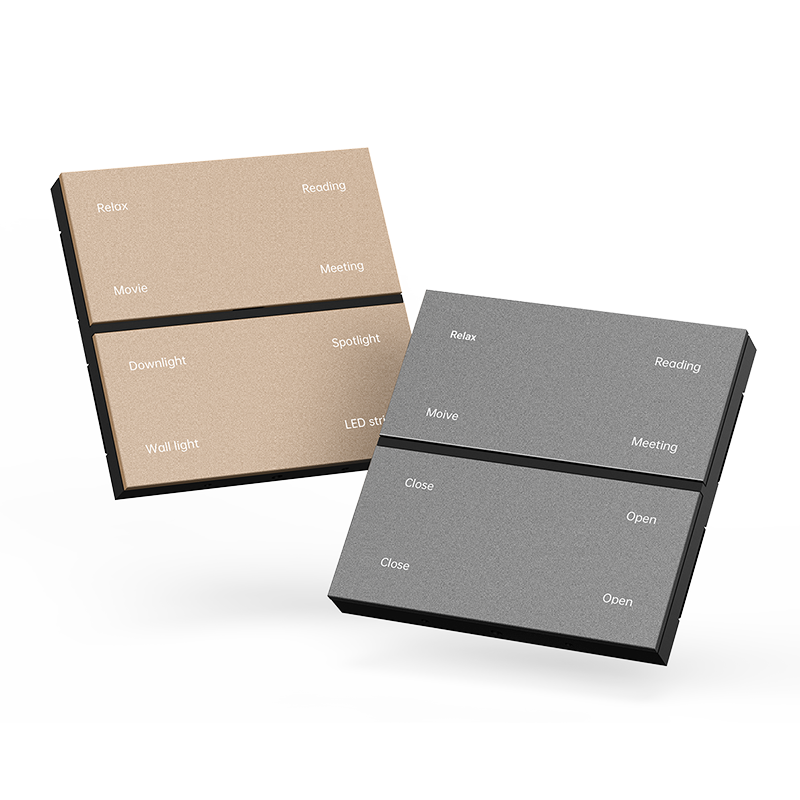

titanium panel engraved keys
